RustpyBench: A Comparative Benchmark Python versus Rust on Numerical Solving of the Heat Equation

RustpyBench is a project done for a course Advanced programming techniques at FTN. It compares how well python and rust ftcs heat equation solvers parallelize by analyzing strong and weak scaling.

Project Structure

python/
  core/             rustpy_bench.core — shared library for python solvers
  serial/           heatpy      — serial NumPy reference solver
  multi-processing/ heatpy-mp   — multiprocessing (shared-memory) solver
  viz/              heatviz     — heatviz-scaling / heatviz-field CLIs for generating plots

rust/
  core/             rustpy-bench-core — shared library for rust solvers (mirrors python/core)
  serial/           heatrs      — serial solver (packaged as a Python entry point via maturin)
  multi-threading/  heatrs-mt   — multi-threaded solver (also maturin pakcage)

scripts/
  strong_scaling.py   driver: fixed problem size, sweeps core/thread count
  weak_scaling.py      driver: per-worker problem size held constant, grid grows with workers
  _common.py           shared subprocess/solver-lookup helpers

experiment.toml     single source of truth for equation, initial condition, and
                     scaling parameters — read by both the Python and Rust sides

results/            report.typ / report.bib (Typst report) + generated assets
                     (plots, scaling_tables.txt, and the strong.h5 / weak.h5
                     benchmark outputs, once you've run the experiments)

docs/               specification, proposal, and scaling background notes

Every solver (heatpy, heatpy-mp, heatrs, heatrs-mt) exposes the same CLI shape (--nx --ny --t --out --snapshot-every --run-id, plus --workers/--threads for the parallel variants) and writes its timing and the temperature-field snapshots into an HDF5 group addressed as path/to/file.h5#/group/path. This is what lets one set of Python driver scripts (scripts/*.py) benchmark all four variants identically.

Quickstart

Prerequisites

uv (Python package/venv manager)
A Rust toolchain (version pinned in rust-toolchain.toml; rustup will fetch it automatically)
libhdf5-dev and pkg-config (needed to build the Rust hdf5 crate and potentially the h5py package), and make

sudo apt install libhdf5-dev pkg-config make build-essential

Install / build everything

make install   # uv sync --locked --dev — builds heatpy, heatpy-mp, heatviz,
               # and (via maturin) the heatrs / heatrs-mt Rust binaries,
               # all placed on .venv/bin

(make dev does the same without --locked, if you want uv to re-resolve versions.)

Run the experiments

Parameters (grid sizes, t_end, core/thread counts, repetitions) come from experiment.toml — edit it once and both drivers below pick it up.

make strong    # -> results/strong.h5
make weak      # -> results/weak.h5

Each driver runs the serial baseline plus every core/thread count in experiment.toml, [experiment].repetitions times, and appends every run into the output HDF5 file under /strong/<variant>/nx{NX}_ny{NY}/cores{N}/<run> (or /weak/...). Re-running is additive — delete results/strong.h5 / results/weak.h5 first if you want a clean run.

You can override anything the drivers accept directly:

make strong ARGS="--reps 5 --cores 1 2 4 --variants heatpy heatpy-mp"
make weak   ARGS="--out results/weak_dev.h5 --snapshot-every 50"

Visualize the results

make viz       # heatviz-scaling --strong results/strong.h5 --weak results/weak.h5 --out-dir results/assets

writes strong_python.svg, strong_rust.svg, weak_python.svg, weak_rust.svg, and scaling_tables.txt into results/assets/. Extra args pass straight through the same way:

make viz ARGS="--out-dir results/assets_v2"

To render an individual run's temperature field as a GIF or a single PNG frame:

make field ARGS="--h5 results/strong.h5#/strong/heatrs/nx512_ny512/cores1 --gif results/assets/heatrs.gif"
make field ARGS="--h5 results/strong.h5#/strong/heatpy/nx512_ny512/cores1 --frame -1 --png results/assets/heatpy_last.png"

Everything at once

make experiments   # strong + weak + viz

Cleaning up

make clean       # caches, build artifacts
make clean-all   # + .venv and generated *.h5 / *.pdf

Results

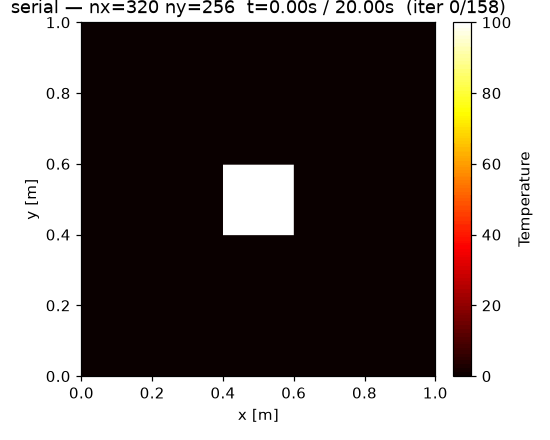

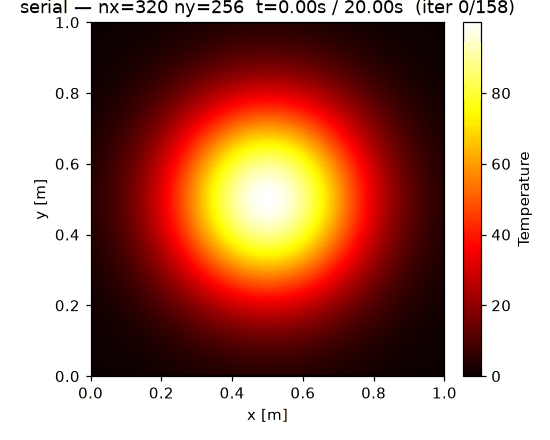

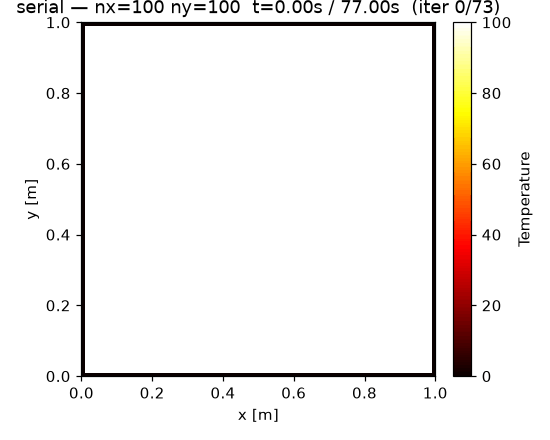

The report and resulting assets from my experiment run can be found at results/2026-07-05. Below are example gifs generated from all three supported initial conditions:

gaussian	hot square	uniform
